Wet Extrusion • DSP Series

DSP80-B Wet Pellet Feed Expanding Machine — High PDI, Clean Cutting, Steam Conditioning

Wet-type extruder with steam conditioning for aquafeed & premium pet food. Higher PDI & uniform density via moisture/heat control; clean cutting for neat pellets.

Get Instant Price Chat on WhatsApp Download Brochure
[800–2,000] kg/h
Typical output*
[110–160] kW
Main motor
0.8–12 mm
Die hole range
Ø80 mm
Screw diameter
*Values vary by formula, steam, die and operator settings.

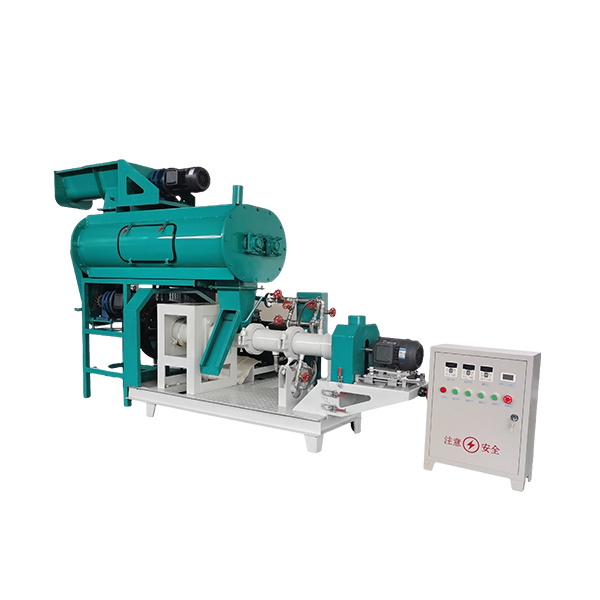

DSP80-B Wet Pellet Feed Expanding Machine

Why DSP80-B

Steam conditioning increases retention time and moisture, improving PDI and starch gelatinization for stable pellets.

Steam Conditioner

Uniform moisture & heat → high PDI.

Stable Expansion

Controlled residence time & temperature.

Clean Discharge

Optimized die + cutter reduce fines & tailing.

Flexible Formulas

Floating/sinking aquafeed, pet snacks.

Quick Change Dies

0.8–12 mm with fast change kits.

Hygiene & Safety

Interlocks, overload; easy-clean doors.

Performance & Utilities

Typical output

[800–2,000 kg/h] by formula, steam & die.

Main motor

[110–160 kW] AC; VFD recommended.

Pellet size

0.8–12 mm round (shapes optional).

Steam demand

0.2–0.4 MPa, dry/saturated; traps & valves.

Temperature

Conditioner [80–95°C]; barrel [120–180°C].

Materials

SS304 contact options; wear-resistant screw/liner.

Note: Results depend on formulation, moisture, residence time and die compression.

Conditioner & Cutter Options

Conditioner

Single-layer standard; dual-layer upgrade for higher PDI.

Liquid dosing

Oil/enzymes pump set; fine control of addition.

Cutter assembly

Adjustable knife speed; quick-release hub.

Technical Specifications

Replace bracketed values with your exact data.

ModelScrew ØPellet ØCapacityMain MotorConditionerCutterDimensionsWeight
DSP80-B Ø80 mm 0.8–12 mm [800–2,000 kg/h] [110–160 kW] [Single / Dual-layer] [Adjustable, quick-release] [— × — × — mm] [— kg]

Options: SS304 contact parts, dual-layer conditioner, VFD pack, dosing skid, steam kit (traps & valves), magnet, aspiration port.

Budgetary Price Estimator

For budgeting only. Final price depends on configuration and destination.

Machine & Options

Stainless contact parts
$
Dual-layer conditioner
$
Steam traps & valves kit
$
Boiler package
$
Liquid dosing skid
$
VFD pack
$
On-site installation
$
Freight (estimate)
$

Energy & ROI (Monthly)

$0
Energy cost / month
$0
Saving vs old system
$0
Estimated total (FOB)
This estimator is for budgeting. Taxes/duties/freight vary by destination; final quotation prevails.

Typical Process Flow

1
Grinding/Mixing

Uniform mash with target moisture.

2
Steam Conditioning

Single/dual layer; moisture & heat control.

3
Wet Extrusion

Shear + heat create expansion & shape.

4
Cutting

Knife speed sets pellet length.

5
Drying/Cooling

Stabilize moisture; packaging downstream.

Case Snapshots

Recent configurations supplied. Results vary by formulation and operation.

Tilapia Feed — [Country]
  • Conditioner + wet extruder
  • Floating 1.2–3.0 mm
  • High PDI
Floating1.2–3.0 mmHigh PDI
Pet Food Pilot — [Country]
  • Multiple dies
  • Low fines
  • Quick size change
0.8–8 mmLow finesFast change
Shrimp Feed — [Country]
  • Dual-layer conditioner
  • Stable load
  • Compact layout
Dual layerStable loadCompact

Request a Custom Quote

Tell us your recipe, target capacity and pellet size. We’ll size DSP80-B for you.










    Formula / Species


    Options of interest




    Or email us: vicki@hnbigwin.com • WhatsApp: +8613837313233

    FAQ

    Wet vs. dry extruder — what’s the difference?
    Wet type with steam conditioning reaches higher PDI and better starch gelatinization; dry type is simpler and lower CAPEX (no boiler).
    Floating or sinking pellets?
    Both possible by adjusting moisture, temperature, die compression and cutter speed. We’ll share starting recipes.
    Recommended spare parts?
    Extra die set, cutter knives, wear kit for screw/liner, belts and bearings. 6–12 month kit available.
    Steam requirement?
    Dry/saturated 0.2–0.4 MPa; traps & valves required. Boiler optional.
